Meal Cooler / Secador De Tambor

  • Brand: Sunrise
  • Application: Feather Meal Project | Fish Meal Plant | Meal Plant & Fat Plant | Rendering Plant
  • Shipping: Air / Sea / Train / Truck
  • Warranty Period: One Years with Lifelong Free Service


Meal Cooler Application

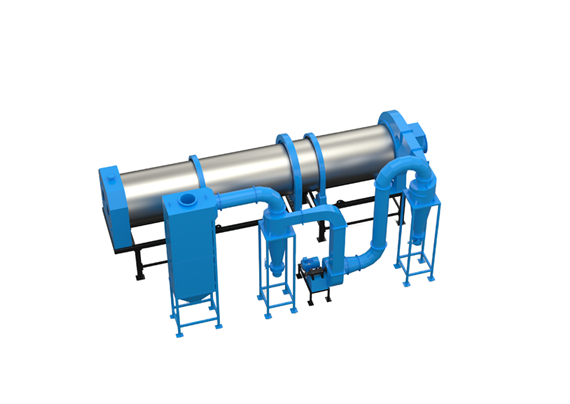

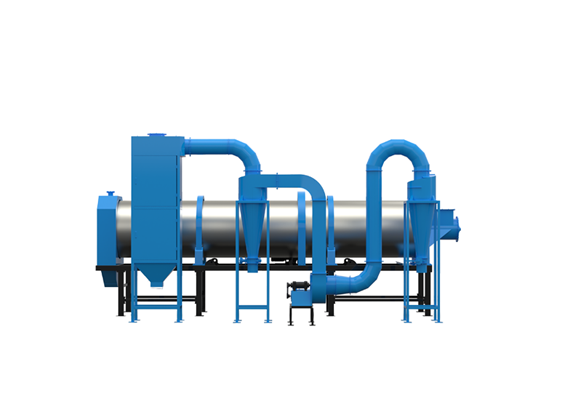

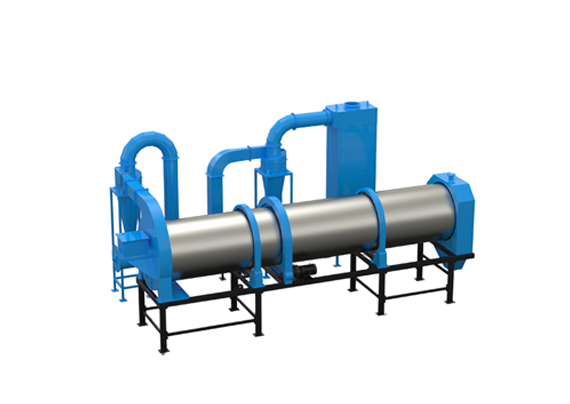

Jiangsu sunrise meal cooler (cold air cooler) is designed to cool the product after the dryer.

What is a Meal Cooler

Meal coolers serve as indispensable gear for individuals who relish outdoor pursuits like camping, hiking, or fishing. Engineered to sustain the chill and preserve the freshness of edibles and beverages, these coolers stand as the ultimate selection for all types of outdoor adventures.

Meal Cooler Design characteristics

1. Simple and sturdy construction with few components and wearing parts, making it an efficient and reliable solution.

2. Continuously working machine with a cooling principle based on the counter flow of cooling air and hot product.

3. It consists of a stator and a rotor, the stator and  rotor are made of mild steel

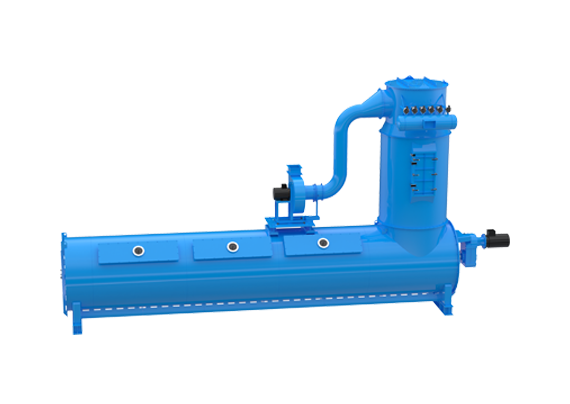

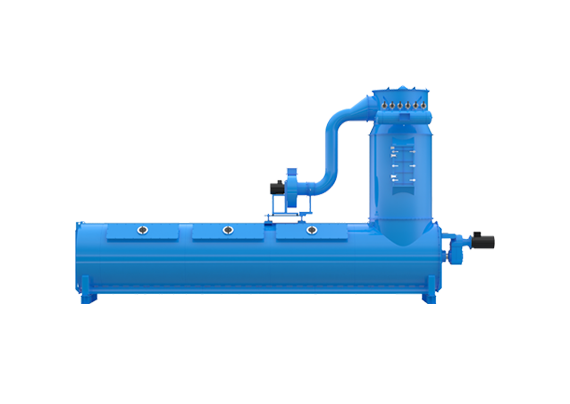

4. The stator is designed as a cylindrical pipe with end plates and supports at both ends. The stator is equipped with sight glasses including cleaning brushes and openings with counter flanges for air intake and outlet. A centrifugal fan installed at the air outlet end extracts the hot air from the CAC through a bag filter, air flow is adjusted by manual throttle.

5. The rotor consists of a rotor pipe with agitating arms and paddles to lift the product up into the cold air stream. The paddles are adjustable to control the retention time in the cooler.

6. The rotor is supported by roller bearings at each stator end plate and is driven by an electric motor and a gear box.

7. The rotor is equipped with agitating arms and paddles lifting the product up into the stator drum where it is cooled by the contact with the air stream that is drawn through the stator by the centrifugal fan.

8. To avoid loss of product a bag filter is built on to catch minor product particles that would otherwise leave the process with the cooling air. The filter unit is provided with automatic time-controlled pneumatic self-cleaning system, eliminating the risk of blocking the filter bags.

Technical parameter

Model Technical specification
Volume(m³) Ability(kg/h) Size(L*W*H)mm Weight(kg) Rotating speed
LF-1600-6000 10 2300 7800*4900*2400 6500 24
LF-1600-9000 18 3350 11000*4900*1800 7500 24

Remark:  Other models can be designed according to customer requirement.

Nominal capacity depends on the product category and processing temperature, so the above value are for reference only.

Meal Cooler FQA

Q: How do meal coolers keep food cold?

A: Meal coolers use insulation and refrigerant packs to keep food at a safe, cold temperature.

Q: Can meal coolers also keep food hot?

A: Some meal coolers have the capability to keep food hot as well as cold, using insulation and heating elements.

Q: How long will food stay cold in a meal cooler?

A: The duration for which food remains cold within a meal cooler hinges on various elements such as the food’s nature, its initial temperature, and the ambient outdoor temperature. Typically, a properly insulated meal cooler can maintain coldness for several hours on average.

Q: Are meal coolers safe to use for perishable food?

A: Certainly, provided that the meal cooler remains in sound condition and boasts effective insulation, it can be confidently employed for safeguarding perishable food items.

Q: What is the best way to pack a meal cooler?

A: For optimal packing of a meal cooler, commence by pre-cooling the cooler using ice packs or frozen water bottles. Subsequently, place your edibles in hermetic containers or resealable pouches to ensure their freshness. Conclusively, make certain to include ice or ice packs within the cooler to maintain the coldness of the food.

Q: How to clean the meal cooler

A: To clean a meal cooler, first empty out any remaining food or ice. Next, wipe down the interior with a damp cloth and mild soap. Allow to dry completely before using again.
