Continuous vs Batch Rendering Process and How to Choose the Right System
Continuous vs Batch Rendering Process and How to Choose the Right System
The rendering process is essential for converting animal by-products such as fat, bones, and offal into valuable products like tallow, meat meal, and industrial oils. Rendering separates fat, protein, and moisture through controlled heating and mechanical separation, transforming waste into usable materials while reducing environmental impact.
One of the most important decisions when building or upgrading a rendering plant is choosing between a continuous rendering process and a batch rendering process. Each system offers distinct advantages depending on plant capacity, automation level, product quality requirements, and investment budget.
This guide explains the differences, advantages, limitations, and selection criteria to help you choose the right rendering system for your operation.
What Is Batch Rendering Process
Batch rendering is a traditional method where a fixed quantity of raw material is loaded into a cooker, processed, and discharged before starting the next cycle.
How batch rendering works
Typical batch rendering steps include:
- Raw material loading into batch cooker
- Heating with steam or indirect heat
- Separation of fat, water, and solids
- Discharge of processed material
- Start next batch cycle
Each batch operates independently, allowing precise control over temperature, pressure, and cooking time.
Key characteristics of batch rendering
Batch rendering is known for flexibility and control. Important characteristics include:
- Independent processing cycles
- Adjustable cooking parameters
- Suitable for small and medium plants
- Capable of handling special materials such as feathers or high-protein waste
- Lower initial investment compared to continuous systems
Batch rendering is often used in facilities with lower throughput or variable raw material supply.
What Is Continuous Rendering Process
Continuous rendering is an automated process where raw material is continuously fed into the system, processed, and discharged without stopping production.
Material moves through crushers, cookers, presses, and dryers in a continuous flow, ensuring steady production and consistent output.
How continuous rendering works
Typical continuous rendering flow includes:
- Continuous feeding of raw materials
- Automated crushing and size reduction
- Continuous cooking in a screw or disc cooker
- Mechanical separation of fat and solids
- Continuous drying and cooling
- Final product discharge and storage
Continuous systems operate with automated control over temperature, mixing, and retention time, ensuring stable production.
Continuous vs Batch Rendering Process: Key Differences
Understanding the operational and performance differences is essential for proper system selection.
Production capacity
Continuous rendering offers significantly higher production capacity.
- Continuous systems can operate at constant throughput for large-scale processing
- Batch systems process limited volume per cycle
Continuous rendering is ideal for industrial rendering plants processing large quantities daily.
Batch rendering is suitable for:
- Small rendering plants
- Farms or slaughterhouses
- Facilities with intermittent raw material supply
Production efficiency
Continuous rendering delivers higher efficiency because production never stops.
Continuous system advantages:
- Non-stop operation
- Reduced downtime
- Lower labor requirements
- Better energy efficiency
Batch rendering requires loading, cooking, unloading, and restarting cycles, resulting in longer total processing time.
Continuous systems also reduce fuel consumption and electrical usage compared to multiple batch units.
Automation level
Continuous rendering systems are highly automated.
Typical automation features include:
- Automatic blanking
- Automatic temperature control
- Automatic energy supply
- Continuous monitoring
Batch rendering usually requires more production time and cost.Automation improves operational stability and reduces time costs.
Product consistency and control
Batch rendering offers greater flexibility and process control.
Advantages include:
- Adjustable cooking parameters per batch
- Ability to process different raw materials
- Suitable for specialty products
Continuous rendering offers consistency through automated processing, but parameter adjustments are less flexible.
Investment cost
Batch rendering systems require lower initial investment.
Continuous rendering systems require:
- Higher capital investment
- Larger plant infrastructure
- Advanced automation systems
However, continuous systems provide better long-term ROI due to higher production efficiency.
Space requirements
Under large-scale processing demands, continuous rendering systems typically require less space compared to their processing capabilities, as a single continuous rendering device can often replace multiple batch rendering devices, thereby reducing the overall building footprint. In contrast, batch rendering systems typically require several separate units to achieve the same production capacity, which increases the number of devices and space requirements.
Advantages of Continuous Rendering Process
Continuous rendering is the preferred choice for modern industrial rendering plants.
Key advantages include:
- Higher production capacity
Continuous systems process large volumes efficiently, ideal for industrial operations. - Lower operating cost per ton
Automation reduces labor requirements and energy consumption. - Improved operational efficiency
Continuous production eliminates downtime between batches. - Stable and consistent production
Automated controls maintain stable temperature and process conditions. - Suitable for industrial rendering plants
Continuous systems are widely used in poultry rendering plants, animal fat processing plants, and large slaughterhouse rendering facilities.
Advantages of Batch Rendering Process
Batch rendering remains important for specific applications.
Key advantages include:
- Lower investment cost
Batch systems are ideal for smaller facilities and startups. - Greater processing flexibility
Operators can adjust process parameters based on material type. - Suitable for small and medium plants
Batch rendering works well with limited raw material supply. - Easier installation and maintenance
Batch cookers are simpler and easier to operate.
When to Choose Continuous Rendering Process
Continuous rendering is the best choice if your plant has:
- Large daily processing volume
- Continuous raw material supply
- Industrial-scale production requirements
- Need for automation and efficiency
- Long-term production planning
Continuous systems are widely used in:
- Poultry rendering plants
- Industrial animal fat rendering plants
- Large slaughterhouse rendering facilities
- Integrated rendering and meat processing plants
When to Choose Batch Rendering Process
Batch rendering is suitable when:
- Processing volume is small or variable
- Investment budget is limited
- Flexible production is required
- Startup rendering plants or farms
- Pilot or small commercial rendering plants
Batch rendering is also useful when processing special materials requiring controlled conditions.
Hybrid Rendering Systems: Combining Both Methods
Some rendering plants use both batch and continuous systems.
This approach allows:
- Continuous processing of standard materials
- Batch processing of specialty or difficult materials
- Flexible production planning
Hybrid systems provide both efficiency and flexibility.

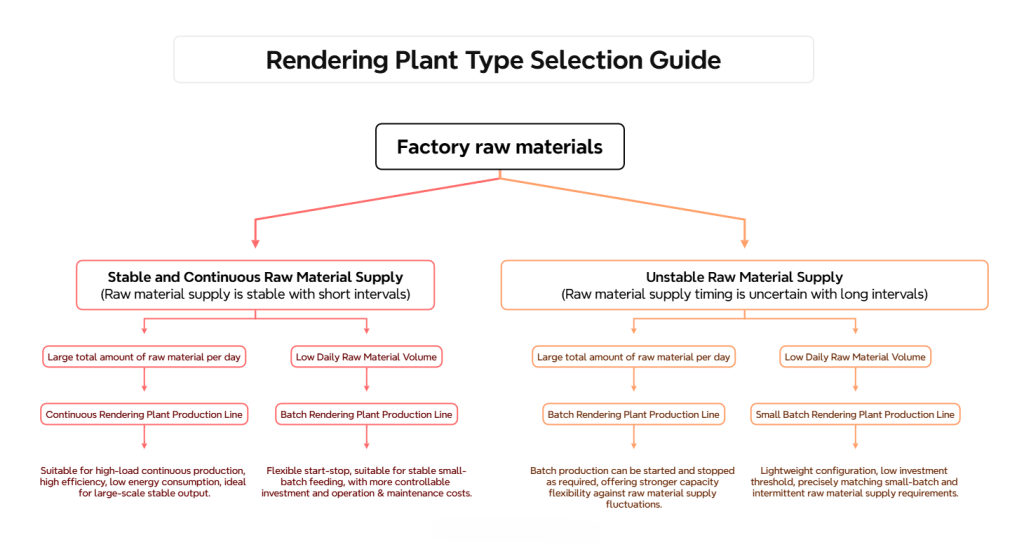

How to Choose the Right Rendering System for Your Plant
Choosing the correct system depends on several key factors.
Daily production capacity
- Small capacity → Batch rendering
- Large capacity → Continuous rendering
Investment budget
- Lower budget → Batch rendering
- Higher budget with long-term ROI → Continuous rendering
Raw material requirements
- Raw material supply stability
- Intermittent supply → Batch rendering
- Stable continuous supply → Continuous rendering
Equipment Used in Continuous and Batch Rendering Systems
Both rendering systems use similar core equipment, including:
- Crusher for raw material size reduction
- Cooker for heating and fat separation
- Press for liquid and solid separation
- Dryer for moisture removal
- Storage tanks for fat collection
The main difference is whether these components operate in batch cycles or continuous flow.
Continuous vs Batch Rendering: Summary Comparison
| Feature | Batch Rendering | Continuous Rendering |
|---|---|---|
| Production capacity | Low to medium | High |
| Automation level | Low/Medium/High According to user needs | High |
| Investment cost | Lower | Higher |
| Operating efficiency | Lower | Higher |
| Flexibility | High | Medium |
| Labor requirement | Low to moderate | Lower |
| Suitable plant size | Small to medium | Medium to large |
| Best application | Small rendering plants | Industrial rendering plants |
Conclusion
Both batch and continuous rendering plant processes play essential roles in animal fat and by-product processing.
Batch rendering plant is ideal for small-scale operations, flexible production, and lower investment. Continuous rendering plant is the best solution for large industrial rendering plants requiring high capacity, automation, and long-term efficiency.
Choosing the right system depends on your production scale, budget, and operational goals. Many modern rendering plants prefer continuous rendering due to its efficiency, automation, and lower operating cost over time.
If you are planning to build or upgrade a rendering plant, selecting the correct rendering process is one of the most critical decisions for ensuring operational efficiency and long-term profitability.
